MOXIN 60kW Controller Upgrade Light Bee

Description
High performance universal electric motor FOC controller, MOXIN S801100, delivers up to 60kW peak output and 1000 phase current amps, making it one of the most powerful controllers in the market so far.

All programming is done through the controller's LCD display. It's straightforward and user friendly. The controller comes with an informative user manual and full support from our team.

This is a complete plug and play kit for Sur-Ron Light Bee. It can be used on other bikes with minor harness modifications. If you have a request, please contact our team for a solution.

Reverse gear
You heard it right. On the left combination switch there is an “R” button. Once pressed and held, the controller will change to reverse gear, which is very useful for certain applications.

Programming
Moxin controllers are fully programmable via its own display. The interface is very user friendly and every value has an explanation on the display. You can adjust all most important settings: battery voltage, battery current, phase amps, throttle voltage, throttle sensitivity, regen braking, field weakening, motor direction and much more.

You can read our Moxin controller user manual by pressing RIGHT HERE

Wheelie mode
This controller is unique as it has a built in gyroscope which can read your bike's angle and, depending on the entered angle in the controller menu settings by the user, the bike will just ride wheelie without flipping it by just using regen.

Great for beginners and intermediate riders who want to feel the pivot point at a higher angle without having to risk their health to have an accident and get injured.

Important
• Wheelie mode needs a battery that can handle at least 100A regen for short bursts

Choose your display size
Controller comes with the LCD display available in different sizes • 3 inch • 5 inch • 7 inch

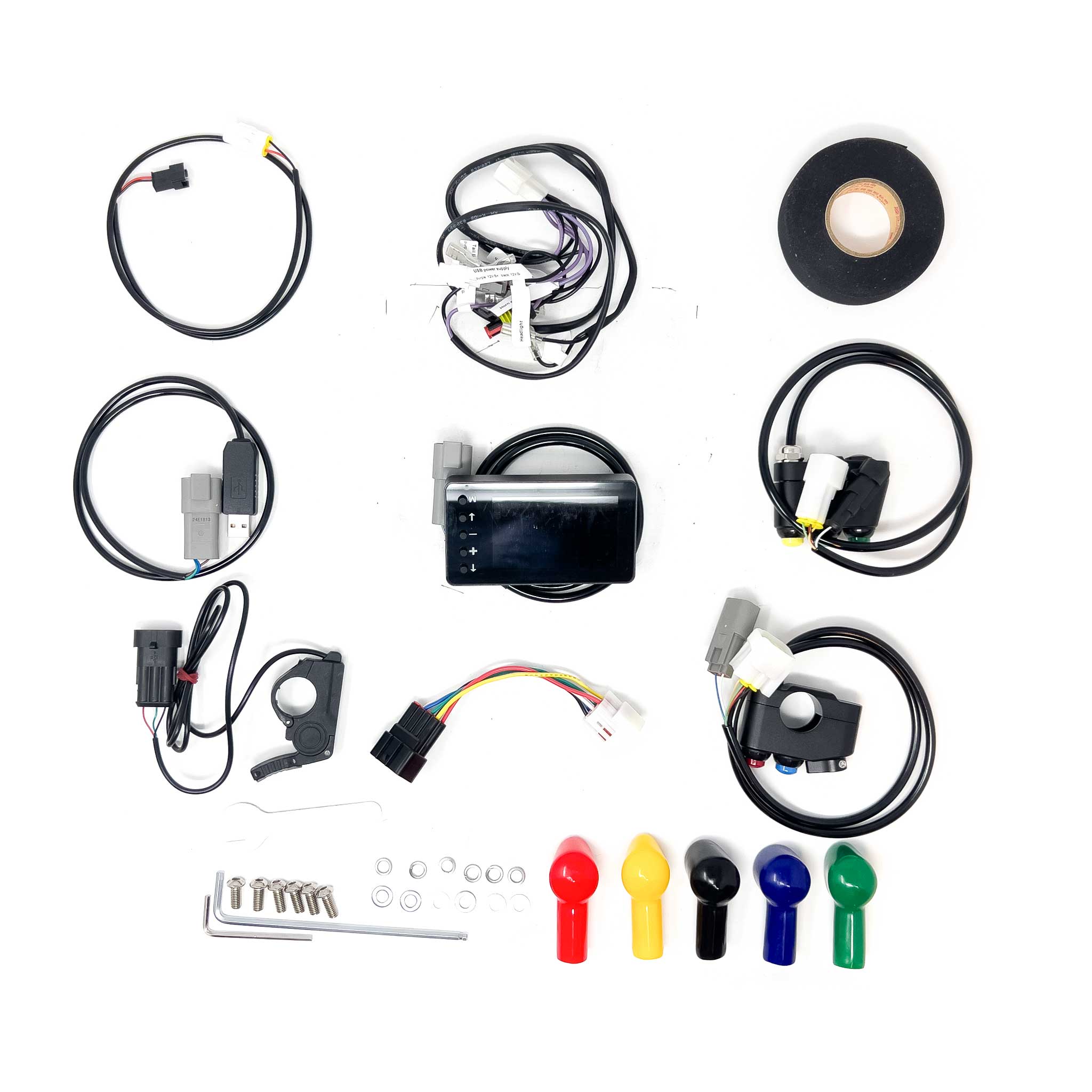

What's in the box
• MOXIN S801100 controller
• Every connector is marked with its own label describing it
• LCD Display
• Left and right combination switch
• Regen linear electronic brake thumb throttle
• Encoder to hall adapter
• OTA computer update cable
• Installation tool kit
• Electrical tape

Key specs
• Peak power: 61.6kW for 10 seconds
• Rated voltage: 48V to 81V
• Peak phase current: 1000A
• Continuous bus current: 500A
• Max efficiency: 96 percent
• Operating temperature: -40C to +75C
• Weight: 1.7kg
• IP68
